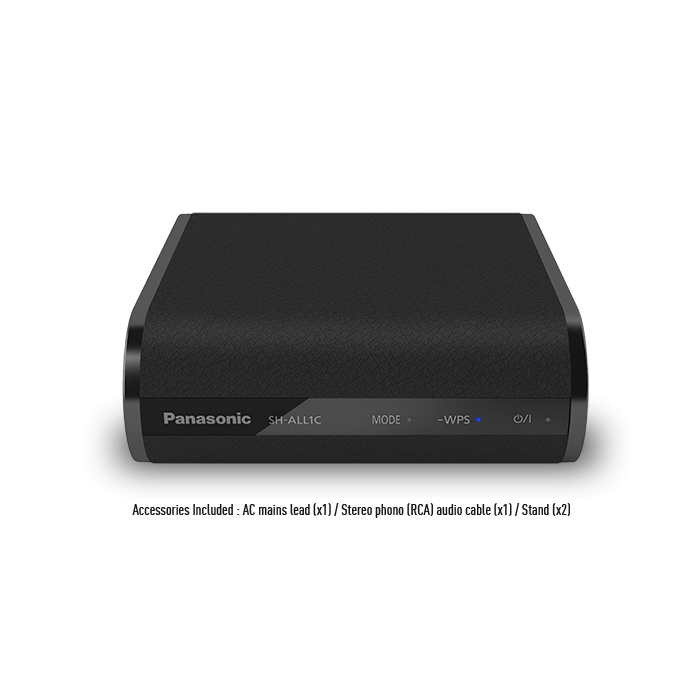

Panasonic SH-ALL1CEB-K Network Audio Connector

Join Your Current Audio Component into Your Expandable Multi-room System
Qualcomm® AllPlayTM

High Quality Output Audio Signal
192kHz/24bit DAC, Gold-Coated Terminals

Direct + Full Control from Various Music Subscription Service App

Wi-Fi Frequency Range • (5GHz/ 2.4GHz)

Analog Audio Output Stereo (Gold Coating Pin Jack) • (FS:2Vrms)
Analog Audio Input (AUX) Stereo (1/8", 3.5mm Jack) -
LAN (Ethernet) Terminal 10 Base-T/ 100 Base-TX •
Others Power Supply AC 120V, 60Hz (P/ PC)
AC 220-240V 50Hz (EG/ EB)
Power Consumption Normal Use [Approx.] 3W
Standby [Approx.] 0.2W
Dimensions, Weight Dimensions (W x H x D) [Approx.] 5-3/8 x 1-31/32 x 5-19/32 inch (136 x 51 x 142 mm)
Weight [Approx.] 0.73 lbs. (330 g) *Under study
NOTE *1 Party Mode; playing a single sound source simultaneously through multiple speakers. The maximum number of speakers is limited (Under study).
*2 Multi Zone; playing each of multiple songs within the same network to separate speakers. The maximum number of sound sources is limited (Under study).
When using a subscription service, this function depends on the conditions of the service provider (Under study).
*3 App is available on the App StoreSM. App is available on Google Play™.
*4 Wall-mount accessory not included.

・Specifications are subject to change without notice.
